Description

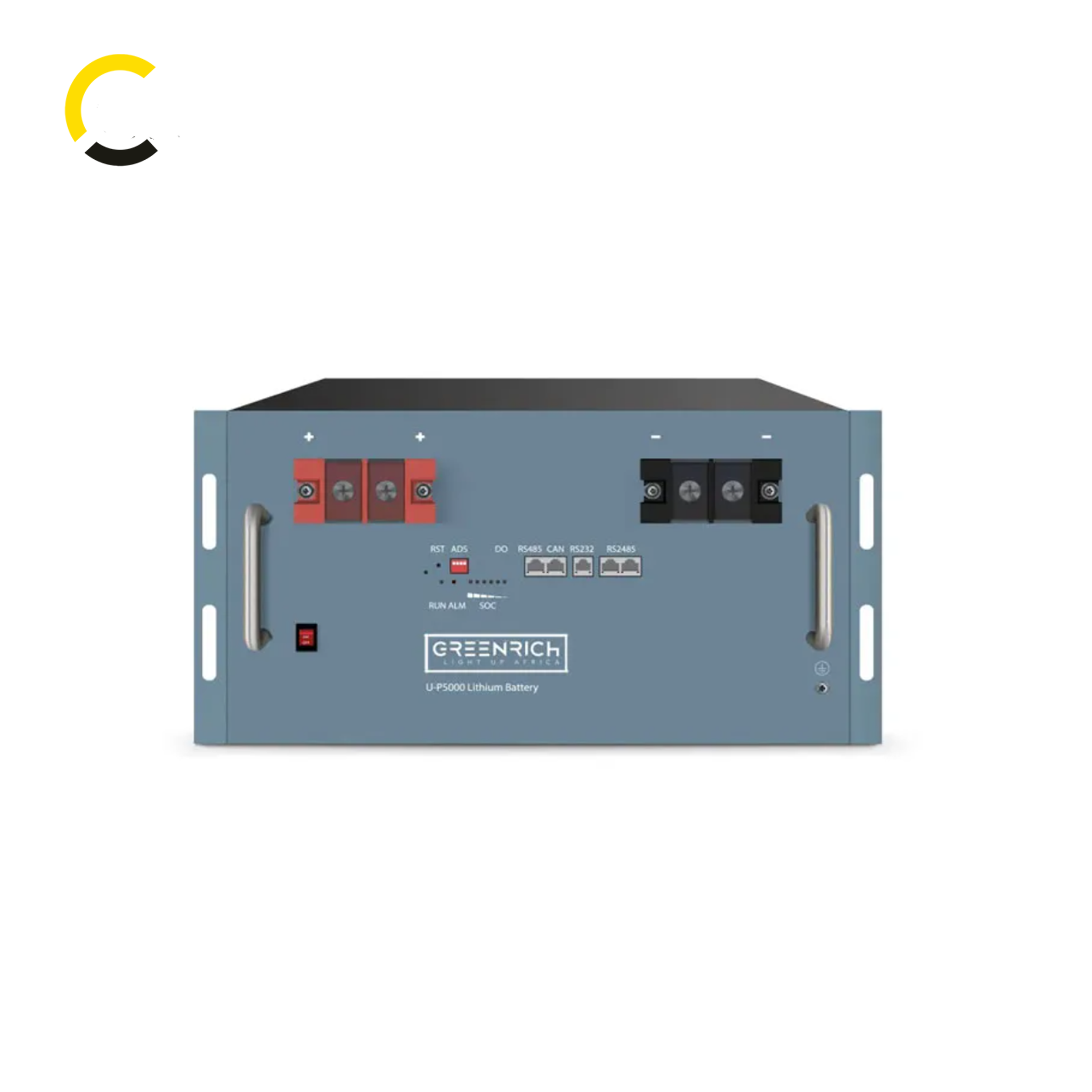

New Evolution Lithium-ion battery that is superior to it’s competitors. 2C charge / discharge rating and can handle a max current draw of up to 144Amp. The Greentech/Greenrich lithium-ion battery have a much larger power output compared to other 0.5C and 1C batteries and the charge time is reduced. Consists of 288 cells with 16 in serial x 18 parallel.

Specifications:

• Capacity – 4.95Kwh / 96.6Ah / 51.2V
• Standard charge current – 50A
• Maximum continuous discharge current – 80A
• Maximum instantaneous output current – 150A
• Peak Inrush Current (100msec) – 350A
• More than 6000 cycles (at 25c) with 80% DoD
• Modular design for system scalability
• Compatible with various Hybrid inverters’ brands via communications port.
• • Sunsynk | Deye
  • Growatt
  • Victron
  • Voltronic Axpert | Kodak | Mecer etc
• Built in BMS that protects the cells from abnormal temperature, current, voltage, Short circuit, SoC and SoH.

Operating Temperature > -20 to 55 degrees celsuis. (ideally 25 degrees C)

FINISHING:

Powder coated in black

DIMENTIONS (mm):

Dimensions 442mm x 512mm x 222 (Rack design)
Weight 51kg

WARRANTY:

10 Years Performance Warranty

5 Years Manufacturing Warranty

Terms & Conditions apply.
