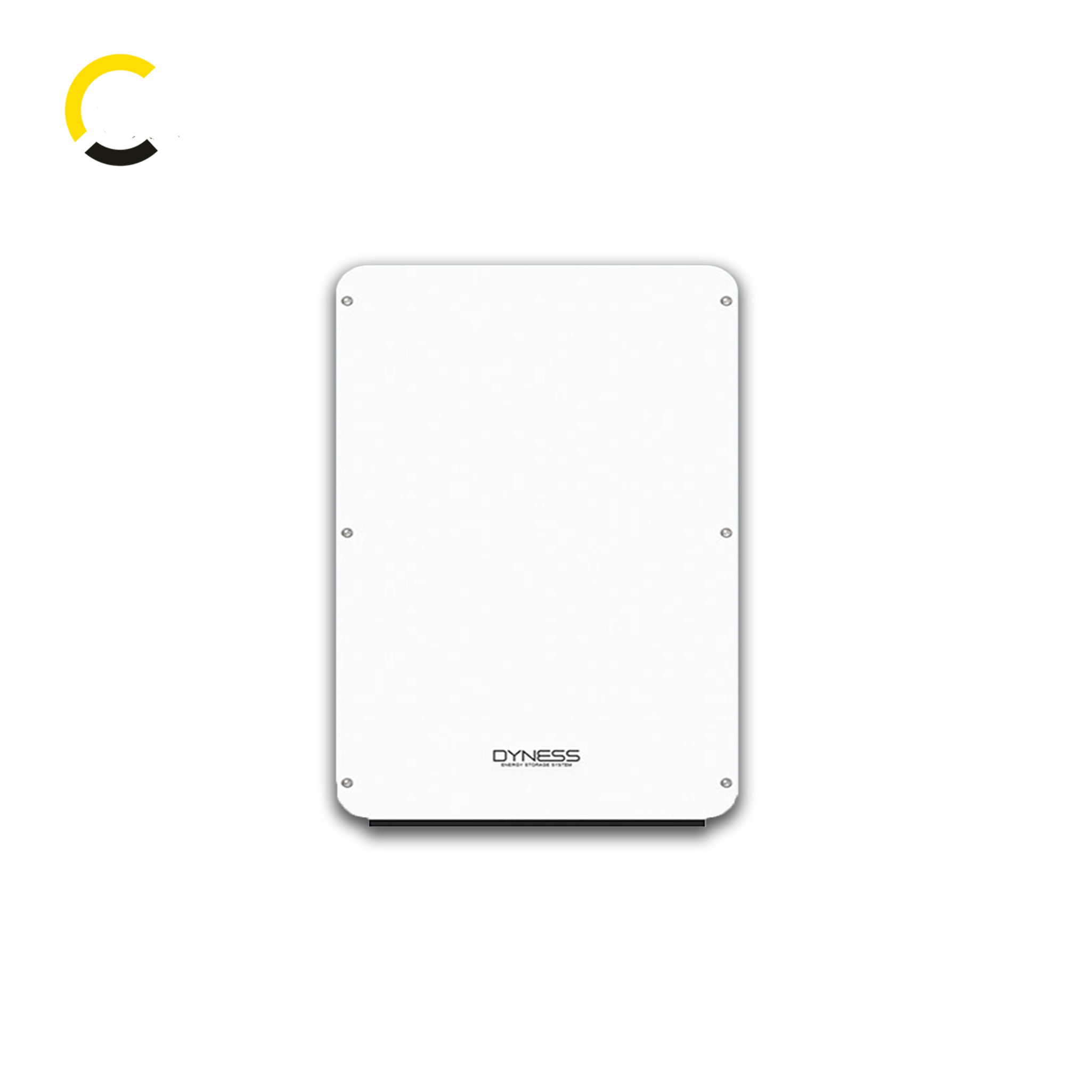

Dyness

Description

General Data
• Model: A48100
• Cell Technology: Li-ion(LFP)
• Battery Module Capacity: 4.8KWH
• Battery Module Voltage: 48VDC
• Battery Module Capacity: 100AH
• Battery Module Cell Quantity: 15 Cell
• Battery Cell Capacity: 320WH
• Battery Cell Voltage: 3.2VDC
• Battery Cell Capacity: 100AH
• Battery Module Cell Quantity in Series: 15 PCS
• Battery Module Charge Voltage: 54.75VDC
• Battery Parallel Capacity: 40 Units
• Communication: CANBUS / RS485
• Mounting: Wall Mount & Rack Mount

Battery Charge / Discharge Current
• 50A Recommended
• 75A Maximum
• 100A Peak @ 15S

Environment Limit
• Charge Condition: 0°C to 55°C
• Discharge Condition: -20°C to 55°C
• Relative Humidity: 5% to 85% (Non Condensing)
• Enclosure Protection: IP20
