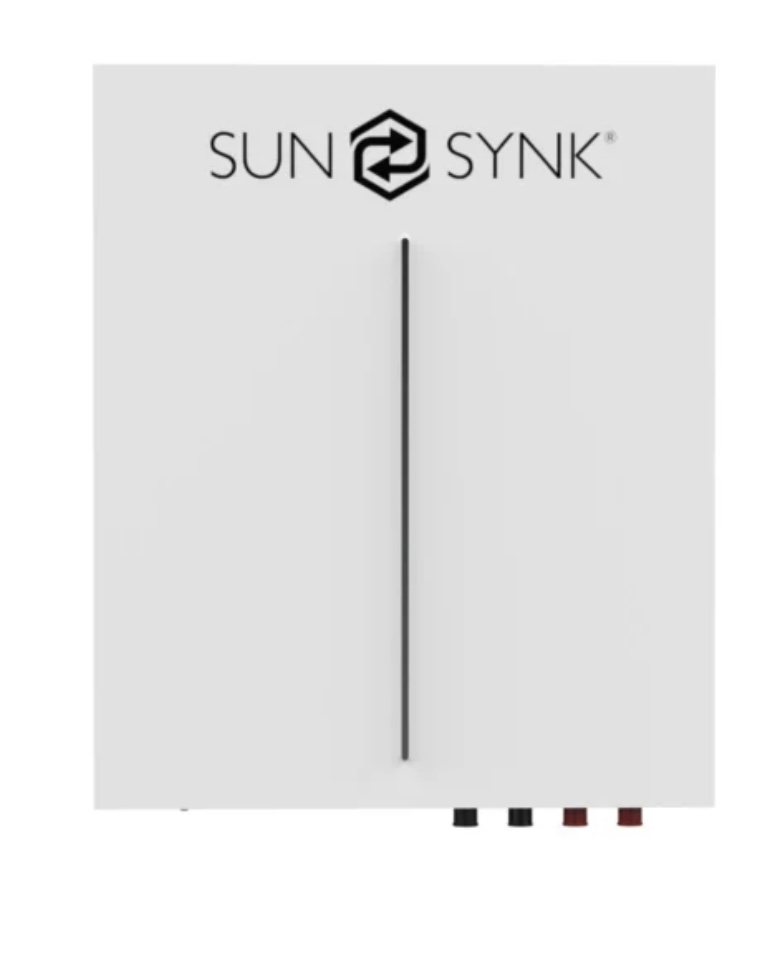

5.12Kw Sunsynk WallMount Lithium Battery

Sale!
BLACK FRIDAY - SPECIALS!

R24,500.00

Category:

Description

  • Cell Type –
    Lithium Ferro Phosphate (LifePO4  or LFP)

  • Nominal Operating Voltage –
    51.2V

  • Nominal Capacity –
    100Ah / 5.12kWh

  • Depth of Discharge (DoD) – 100%

  • Usable Capacity – 5.12kWh

  • Packing – 1P16S

  • IP Rating – IP40

​

  • Minimum Operating Voltage – 44.8V

​

  • Maximum Operating Voltage – 57.6V

​

  • Standard Charging Current – 50A

​

  • Max. Continuous Charging Current – 50A

​

  • Standard Discharging Current – 50A

​

  • Max. Continuous Discharging Current – 100A (1C, 25°C ± 2°C)

​

  • Max. Pulse Discharging Current – 200A (2C, 30S, 25°C ± 2°C SOC≥40%)

​

  • Standard Charging Method – 0.5C CC to 57.6V, CV at 57.6V till
    current is 0.05C

​

  • Min. Operating Temperature (no derating) – Charging: 0°C / Discharging: -20°C

  • Max. Operating Temperature (no derating) – Charging: 50°C / Discharging: 55°C

  • Operating ROH – 20% ~ 80%

  • Storage Temperature – -20 ~ 50°C

  • Self-discharging rate – ≤5% (25°C 50% SoC)

  • SoC @ end of product line – 40%

  • Insulation Resistance – >100MΩ

​

  • Voltage Difference in each module – ≤20mV

​

  • Inner Resistance of single Cell – 0.34 ± 0.05mΩ (fresh cell 30 ~ 40% SoC)

​

  • Altitude Below – 2000m

​

  • Weight – 48kg

​

  • Dimensions  – 440 x 530 x 132mm (not include connector, MSD
    and other parts)

​

  • Expected Life @ 25°C – Greater than 10 years if used as per warranty terms
