Description

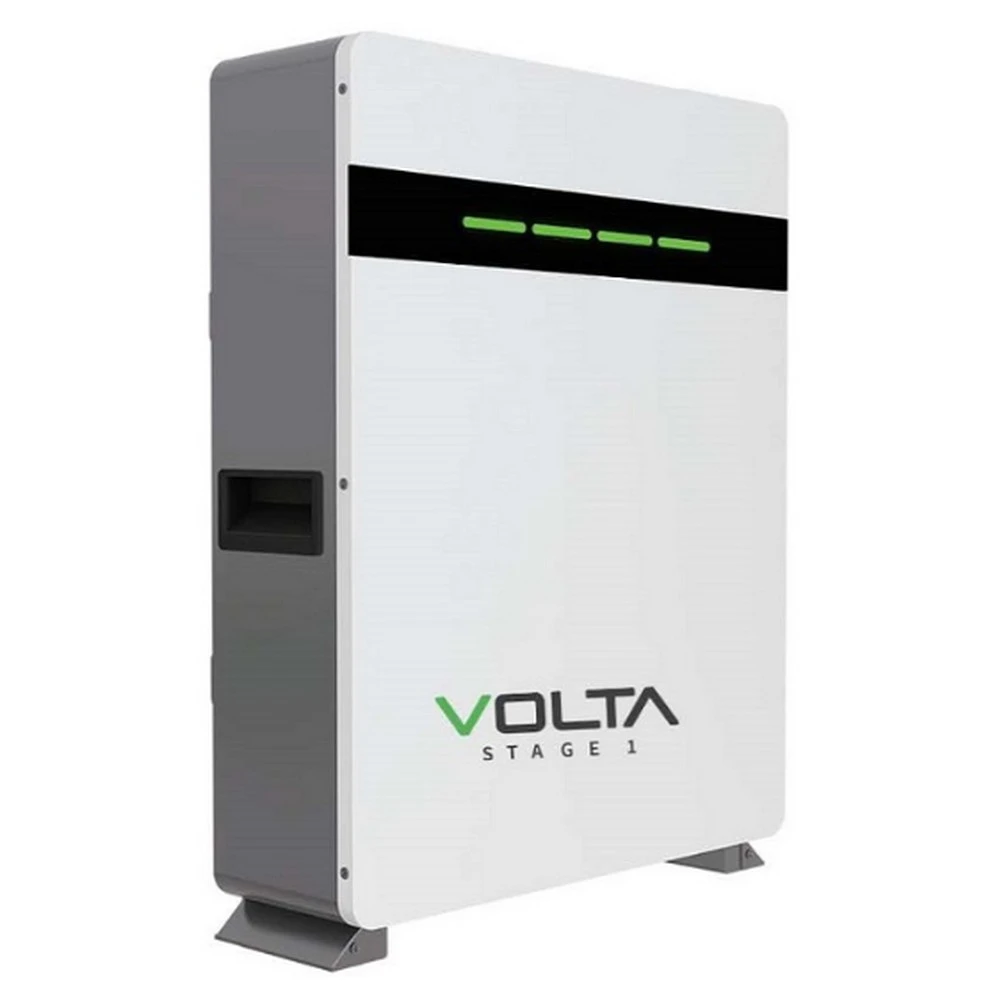

This Volta Lithium-ion Battery 5.12kWh (Stage 1) is relatively lightweight and can be recharged quickly. Comes in both a wall mount and floor stand configuration. The Volta Lithium-ion Battery can support 8 units in parallel to reach 40kwh. Volta Stage 1 Battery is an ideal lithium-ion battery for use in a variety of solar solutions.

FEATURES:

General Data
• Battery Type: Lithium-Ion
• Product Model: VOLTA STAGE 1
•  Energy Nominal: 5.12KWH
• Nominal Voltage: 51.2VDC
• Capacity Nominal : 100AH
• Cell Type: LFP
• 1C/1C Continual Charge & Discharge
• Standard Charge Voltage: 56VDC
• Maximum Discharge Current: 100A
• Discharge Cut-Off Voltage: 44.8VDC
•  Parallel Units: Maximum 8
• Design Life: 6000 Cycles @ 80% DOD @ 25°C
• Installation Type: Wall Mount & Floor Stand

Environment Limit

• Ingress Protection: IP20
• Charge Temperature Range: 0°C to +65°C
• Discharge Temperature Range: -20°C to +65°C
• Communication: RS485, RS232, CAN
• Safety Rating: MSDS / UN38.3

Long cycle life
Using high-quality lithium iron phosphate batteries, the cycle life is more than 6000 times
at 80%DOD, and can be used for 10-15 years

High-quality prismatic lithium iron phosphate battery
Higher capacity, higher current, longer life

Low internal resistance and high current
The low internal resistance of the battery, excellent continuous high current discharge performance

Intelligent BMS battery protection
Built-in intelligent BMS (battery management system), effectively avoiding overcharging, over-discharge, overcurrent, short-circuit, balance and other problems

Communicated with multiple brands of inverters same time
battery BMS supports simultaneous communication and docking with multiple brands of inverter

Good safety performance
Extreme safety test, no fire, no explosion, no leakage
