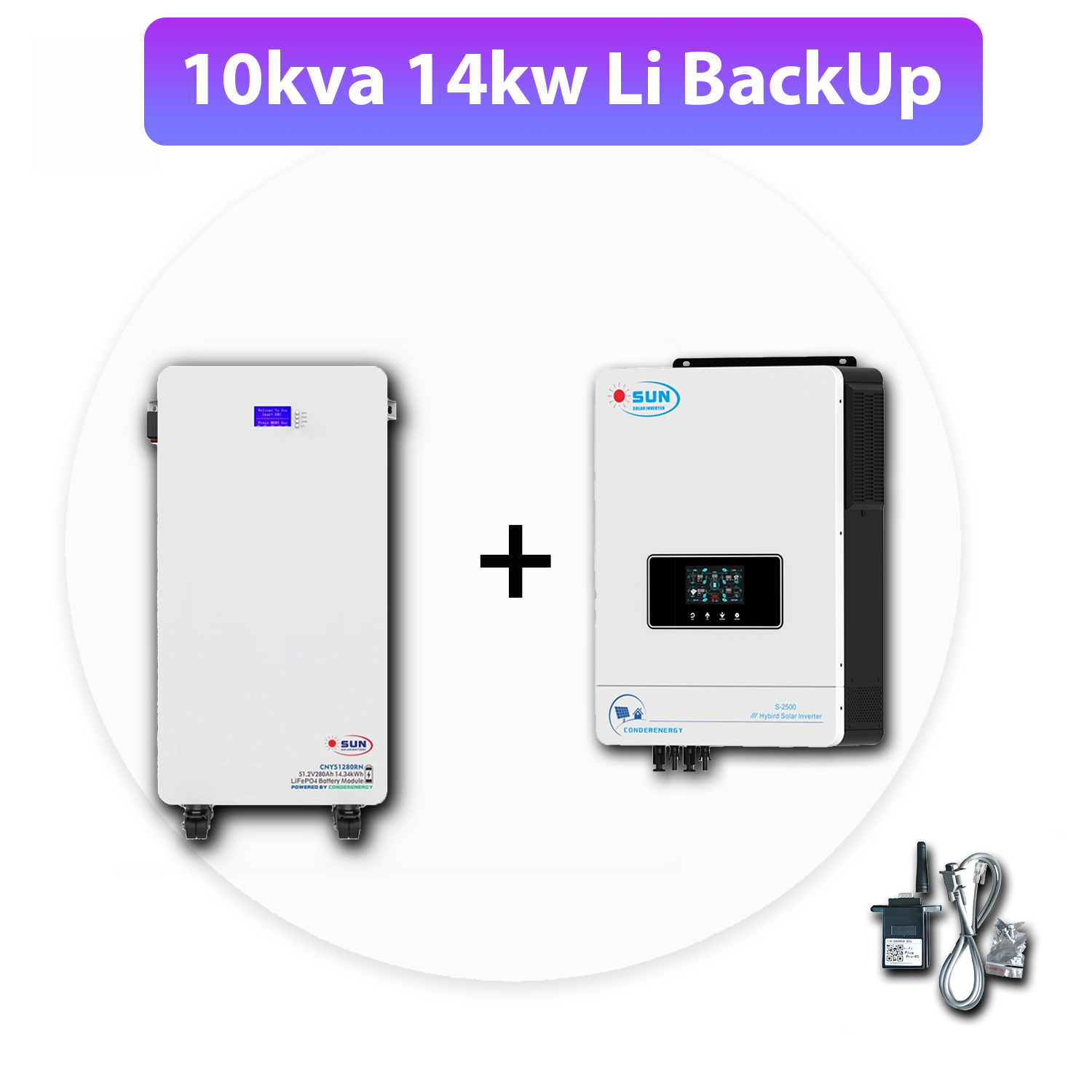

Hybrid Inverter 10.2 KVA 10200 Watt MPPT 48V- Conderenergy S-2100

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features
􀀎 Pure sine wave inverter
􀀎 Configurable input voltage range for home appliances and personal computers via LCD setting 􀀎 Configurable battery charging current based on applications via LCD setting
􀀎 Configurable AC/Solar Charger priority via LCD setting
􀀎 Compatible with mains voltage or generator power
􀀎 Auto restart while AC is recovering
􀀎 Overload/ Over temperature/ short circuit protection
􀀎 Smart battery charger design for optimized battery performance
􀀎 Cold start function

PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc

RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-51±1Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz

TWO LOAD OUTPUT POWER:

Full Load 10200W
Maximum Main Load 10200W
Maximum Second Load 3400W

Size:

555 X 405 X 135

14.5Kg
