The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Product Features

• Built-in 2 MPPT
• Lithium battery activation function by PV or Utility • Compatible work with LiFePO4 battery via RS485
• Pure Sine Wave
• Power factor 1.0
• PV Input 500Vdc Max
• Built-in MPPT 160A
• Capable to work without battery
• Detachable dust cover for harsh environment
• Wifi remote monitoring optional
• Support multiple output priority: SUB,SBU, SUF
• EQ function to optimize battery performance and extend lifecycle

Specifications:

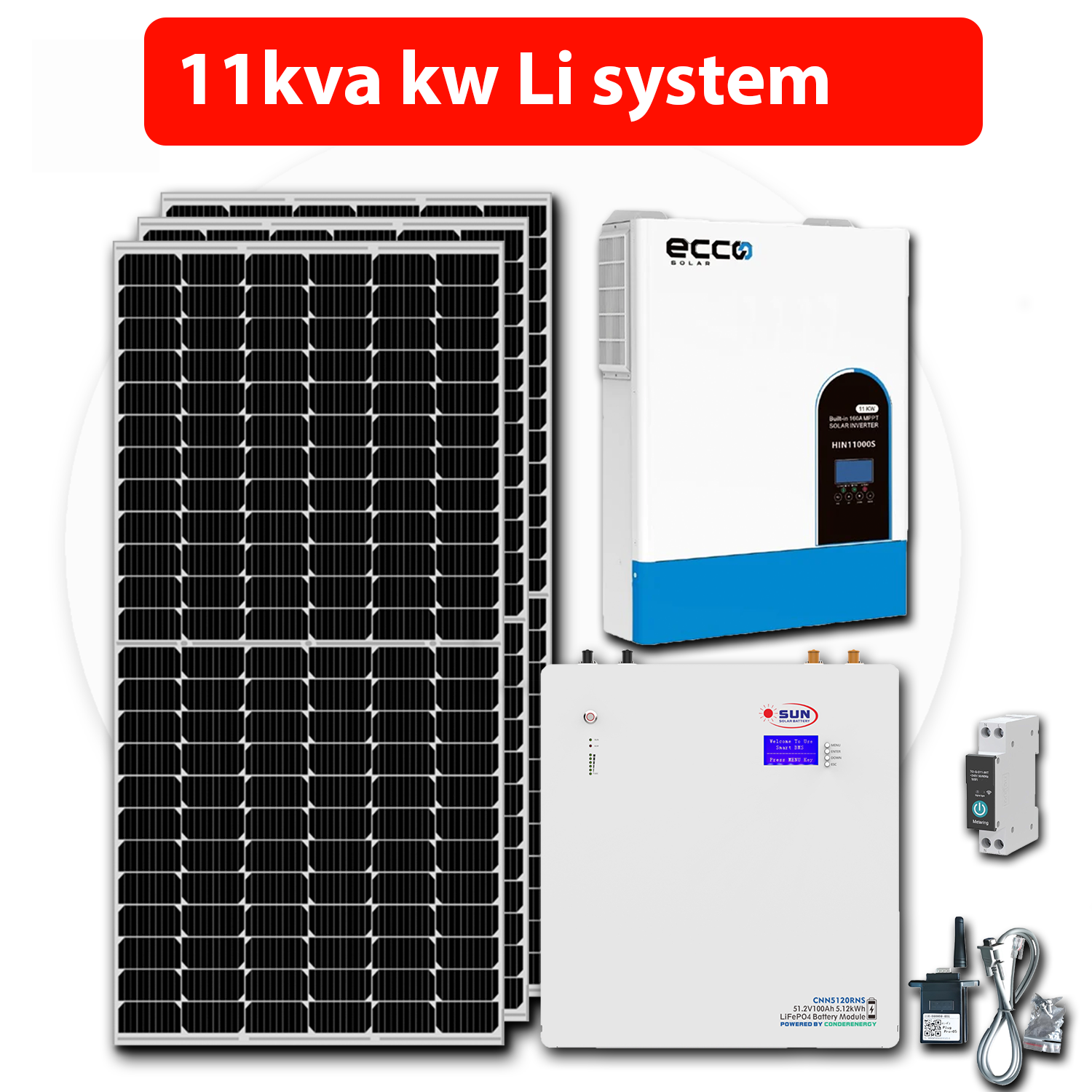

• MODEL : HIN11000S
• Capacity : 11KVA/11KW
• Maximum PV Input Power : 11KW
• Parallel Capability : NO
• Lithium Battery Activation : YES (BY PV  OR UTILITY)
• Lithium Battery Communication : YES(RS485)

INPUT

• Nominal Voltage : 230VAC
• Acceptable Voltage Range : 170-280VAC(For Personal Computer) : 90-280VAC (For Home Appliances)
• Frequency : 50/60 Hz (Auto Sensing)

OUTPUT

• Nominal Voltage : 220/230/240VAC
• Surge Power : 22000VA
• Frequency : 50/60 Hz
• Waveform : Pure Sine Wave
• Transfer Time : 10ms(For Computers) 20ms(For Home Appliances)
• Peak Efficiency : 94%
• Overload Protection : 5s @ 140% Load

BATTERY

• Battery Voltage : 48V
• Maximum Discharge Current : 220A
• Floating Charge Voltage : 54VDC
• OverCharge Protection : 63VDC
• Charging Method : CC/CV

SOLAR CHARGER & AC CHARGER

• Solar Charger TYPE : MPPT
• Max.PV Array Power : 5500W*2
• Max. PV Array Open Circuit Voltage : 500VDC
• PV Array MPPT Voltage Range : 60VDC-500VDC
• Max. Solar Input Current : 18A*2
• Max. Solar Charge Current : 160A
• Max. AC Charge Current : 120A
• Max. Charge Current : 160A

PHYSICAL

• Dimensions, D x W x H(mm) 540 X 415X 122
• Net Weight (Kgs) 15KG
• Communication Interface RS232/RS485/DRY CONTACT
• LCD
