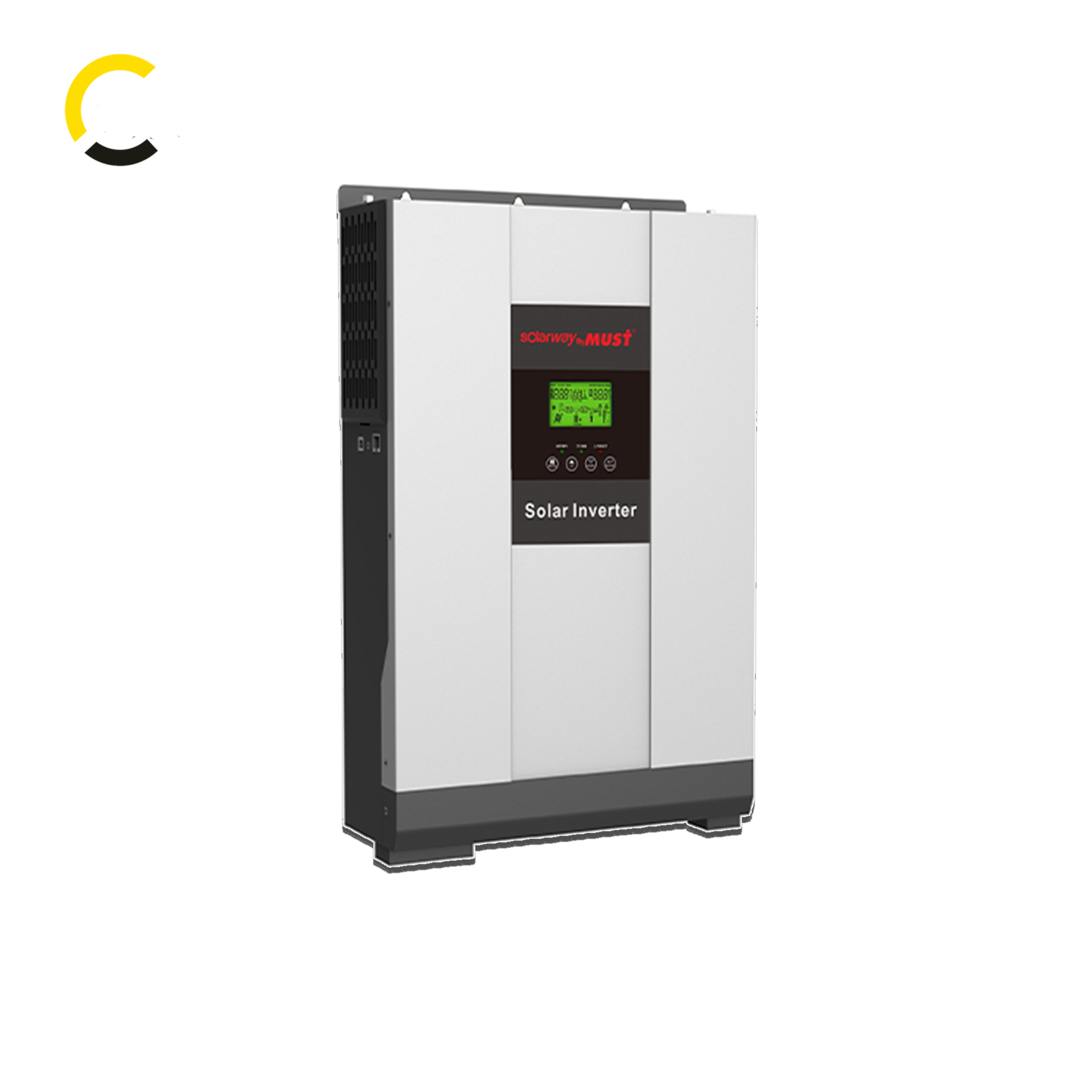

4Kva Must Hybrid Inverter 24v

Sale!
4Kva Must Hybrid Inverter 24v
New Year - SPECIALS!

Original price was: R6,500.00.Current price is: R4,700.00.

Must

Product Details

Wifi Module For Solar Inverter Hybrid 5KVA 5KW 48V Built in MPPT 80A

This is a multi-function inverter/charger, combining functions of solar 5000w inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Product Date

Technical Specifications For PV1800 VHM Off Grid High Frequency Solar Inverter

Efficiency

Maximum Efficiency

98%

Inverter efficiency

93%

PV Input (DC)

Voltage

230VAC

Selectable Voltage Range

170~280VAC(For Personal Computers); 80~280VAC(For Home Appliances); 184~253VAC(VDE4105)

Frequency Range

50Hz/60Hz (Auto sensing)

Inverter Output (AC)

Rated Power

2000W / 3000W / 4000W / 5000W

AC Voltage Regulation (Batt.Mode)

(220VAC ~ 240VAC)±5%

Inverter Efficiency (Peak)

93%

Waveform

Pure Sine Wave

Transfer Time

10ms(For Personal Computers)20ms(For Home Appliance)

Battery

Nomial voltage

24VDC / 48VDC

Floating Charge Voltage

27VDC / 54VDC

Overcharge Protection

31VDC / 60VDC

Solar Charger & AC Charger

Maximum PV Array Open Circuit Voltage

145VDC

PV Array MPPT Voltage

30~130VDC  ; 64~130VDC

Standby Power Consumption

2W

PV Input Power

1440W/1920W ; 2880W/3840W

Maximum Solar Charge Current

60A / 80A

Maximum AC Charge Current

20A/30A ; 60A

Maximum charging current(A)

80A ; 120A/140A

Protections

Overload

Yes

Short circuit

Yes

Deep discharge

Yes

Product Introduction

Feature Details:

1. Pure sine wave output solar inverter

2. Rated power 2kw/3kw/4kw/5000W inverter

3. Built-in MPPT 60A/80A solar charge controller

4. MPPT efficiency max 98%

5. Overload, short circuit and deep discharge protection

6. Parallel operation with up to 3 units ( Available for 4KW/5000W only )

7. Cold start function

8. WIFI remote monitoring

9 Support UPB, RS485 monitoring function

10. Compatible to generator

Category:

Description

Must 4kw 4000w 100Amp 24v MPPT Solar Hybrid Inverter PV1800 PV18-4024 Eco

PV1800 ECO is a multi-function inverter/charger, combining functions of
inverter, MPPT solar charger and battery charger to offer uninterruptible power
support in portable size. PV1800 ECO Series can run without battery.
The Maximum PV input voltage can reach 400V/450V, which can help
customers make full use of solar energy.

Features:
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Wide PV input voltage range
■ Can provide the power to the load without battery
■ Combining solar system, AC utility, and battery power source to
supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support RS485,CAN monitoring function
■ Dual outputs for smart load management
■ Can communicate with lithium batteries (CAN port)

Inverter Mode:
Rated Power(Main+Second Load):4000VA/4000W
DC Input: 24VDC, 150A
AC Output: 230VAC, 50/60Hz, 15.7A
Output Power Factor: 1.0
AC Charger Mode:
AC Input: 230VAC, 50/60Hz, 17.7A,10
DC Output: 24VDC,60A

Solar Charger Mode:
Rated MPPT Charger Current: 100A
MPPT Voltage Range(Typ): 60-360VDC
Max Solar Voltage(VOC): 450VDC
Max PV Input Current: 18A
Max MPPT Power: 4000W
Max.Charge Current: 100A

What’s in the box
1x Inverter
1x User Manual
