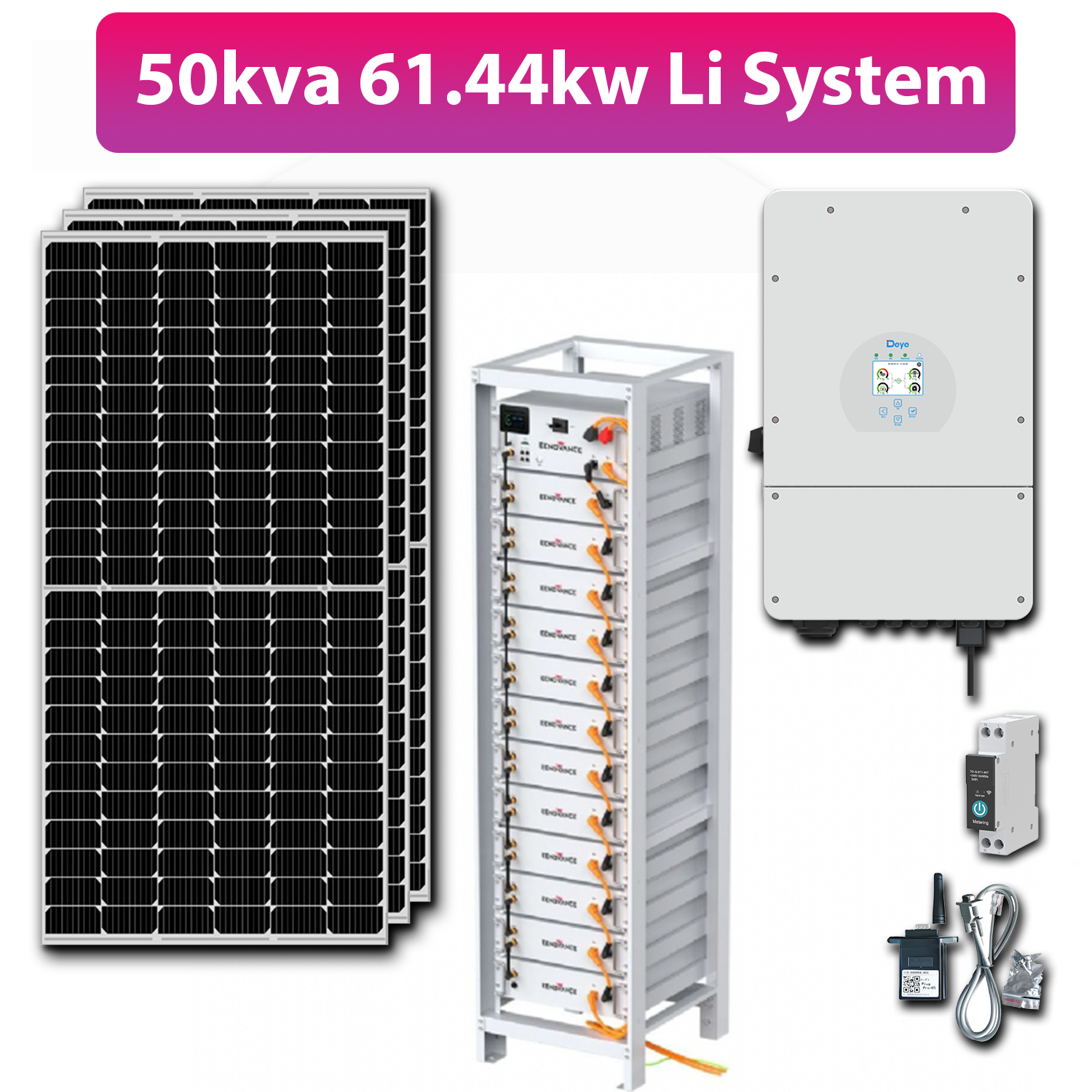

50kva Deye 61.44kw Lithium 64x 600W Solar System

Sale!
50kva Deye 61.44kw Lithium 64x 600W Solar System
Black Friday - SPECIALS SALES!

Original price was: R435,999.00.Current price is: R430,999.00.

Empower your energy system with ESENER’s innovative, high-performance High Voltage Battery, designed for unmatched reliability and efficiency. Created by ESENER’s industry-leading R&D team and manufactured to the highest standards, this energy storage solution is specifically tailored for the African renewable energy market, combining superior quality with affordability.

Perfect for homes, warehouses, and farms, the High Voltage Battery provides an effective solution to combat load-shedding while significantly reducing electricity costs. Its advanced technology ensures seamless integration with solar and grid systems, offering dependable energy storage. Built with durability and efficiency in mind, this system is the ideal choice for individuals and businesses looking to achieve energy independence and cost savings.

Key Features:

  • Advanced 2-Level Battery Management Unit (BMU): Ensures superior safety and reliability.
  • Efficient Cooling System: Air-cooled design for optimal temperature regulation.
  • High Performance: 1C rating for exceptional energy delivery and efficiency.
  • High Energy Density: Over 140Wh/kg, maximizing storage capacity in a compact form.
  • Wide Compatibility: Seamlessly integrates with most high-voltage inverter brands, including Solis, Deye, Sunsynk, Growatt, Megarevo, ATESS, and more.
  • Smart Communication: Equipped with CAN communication for reliable integration.
  • Versatile Operation: Supports off-grid, on-grid, and solar applications.
  • Modular Design: Scalable to meet diverse energy needs.
  • Expandable: Parallel up to 15 ESS systems for large-scale energy storage.
  • User-Friendly Interface: Intelligent LCD display for real-time system status.
  • Remote Capabilities: Firmware updates, monitoring, management, and diagnostics via the internet.
  • Durable Construction: Enclosed in a steel protective cabinet for enhanced safety and longevity.

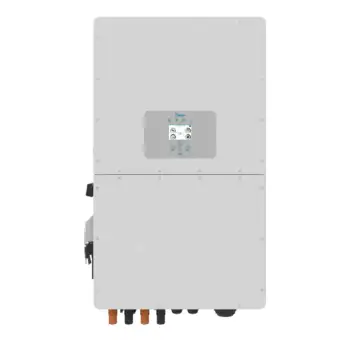

DEYE 50KW HV INVERTER 3 PHASE
1 × DEYE 50KW HV INVERTER 3 PHASE
Original price was: R115,000.00.Current price is: R90,999.00.
ESENER High-Voltage 61.4KWh Air-Cooled Lithium Battery System
1 × ESENER High-Voltage 61.4KWh Air-Cooled Lithium Battery System
Original price was: R265,999.00.Current price is: R229,800.00.
600W Canadian Panels
64 × 600W Canadian Panels
Original price was: R3,999.00.Current price is: R1,800.00.
Category:

Description

Higher yields / Safe & Reliable / Smart / User-friendly

The Deye 50kW is a three phase hybrid inverter which utalises high voltage batteries, this  ensures that system is safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication

Features:

  • 100% unbalanced output, each phase; Max. output up to 50% rated power
  • DC couple and AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 100A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator



Battery Input Data

  • Battery Type: Li-lon
  • Battery Voltage Range (V): 150-800V
  • Max. Charging Current (A): 50A+50A
  • Max. Discharging Current (A): 50A+50A
  • Number of battery input: 2
  • Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

  • Max. DC Input Power (W): 65000W.
  • Max. DC Input Voltage (V): 1000V
  • Start-up Voltage (V): 150V
  • MPPT Range (V): 200-850V.
  • Full Load DC Voltage Range (V): 450-850
  • Rated DC Input Voltage (V) 600
  • PV Input Current (A): 36A+36A+36A+36A
  • Max. PV ISC (A): 55A+55A+55A+55A
  • No. of MPPT Trackers: 4
  • No. of Strings Per MPPT Tracker: 2

AC Output Data

  • Rated AC Output and UPS Power (W): 50000W
  • Max AC Output Power (W): 55000W
  • Peak Power(off-grid): 1.5 times of rated power, 10 S
  • AC Output Rated Current(A): 75.8A
  • Max.AC Current(A): 83.3A
  • Max Continuous AC Pass-through(A): 150A.
  • Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
  • Grid Type: Three Phase
  • DC injection current (mA): <0.5% 1n

Efficiency

  • Max. Efficiency: 97.60%
  • Euro Efficiency: 97.00%
  • MPPT Efficiency: 99.90%

Protection

  • PV Arc Fault Detection: Integrated (Except European Type)
  • PV Input Lightning Protection: Integrated
  • Anti -islanding Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • Insulation Resistor Detection: Integrated
  • Residual Current Monitoring Unit: Integrated
  • Output over Current Protection: Integrated
  • Output Shorted Protection: Integrated
  • Output over Voltage Protection: Integrated
  • Surge protection: DC Type II / AC Type II

Certifications and Standards

  • Grid Regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
  • Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
  • EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

  • Operating Temperature Range ( C ): -40~60℃, >45℃ Derating
  • Cooling: Smart cooling
  • Noise (dB):  <45 dB
  • Communication with BMS: RS485; CAN
  • Weight (kg): 60
  • Size (mm): 560.5W×837H×319D
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 5 years
