5Kva Growatt ES Hybrid Inverter High Voltage

Sale!
5Kva Growatt ES Hybrid Inverter High Voltage
New Year - SPECIALS!

Original price was: R14,900.00.Current price is: R7,999.00.

Grow

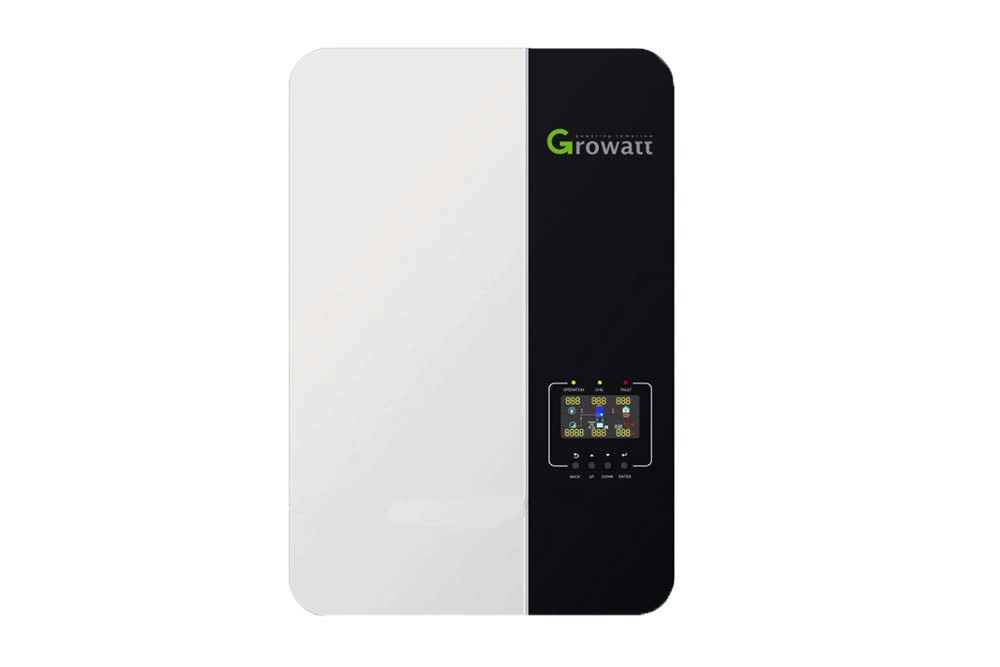

5Kw Growatt SPF 5000 ES Inverter Overview

The Growatt SPF 5000 ES 5kw inverter is a high input voltage solar inverter that allows you to have a larger than average array up to 450VDC. If you are looking for an inverter that will power your heavy appliances during the day, then this is the inverter for you. The Growatt SPF 5000 ES solar inverter is one of the most comprehensive Off-Grid inverters offered by Growatt on the market today. This inverter is used for backup power and for self-consumption applications.



Growatt SPF 5000 ES Features

  • Autonomous Off-Grid Solar Inverter keeps the lights on and your bills down with no effort. This inverter knows what to do and when.
  • Compatible with most  AGM and Lithium-ion batteries on the market, this inverter has many years of development making it stable and robust.
  • If your needs grow so can your inverter, you can connect up to  6 Off-Grid inverters in series to expand.
  • Connect your Lithium-ion battery directly with this new BMS Port, no need for middleware to communicate with your battery.
  • Don’t worry about your battery running dry,  the ES will still use solar or grid.
  • Monitor your usage using the WiFi/GPRS and the  Android App.
  • Built-in  MPPT Controller
  •  Available BMS (Battery Management System) Communication Port
  • Works  with or without  battery
  • Optional WIFI/GPRS  remote monitoring
  • Parallel up to  6 inverters
  •  Integrated UPS  (uninterrupted power supply) function
  • 2-year warranty
Category:

Description

Integrated MPPT charger controller.
Equalization charging function.
Max PV input up to 450vDC.
Choose a grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the batteries.
Warranty: 2 years

General Specifications

Module: SPF 5000 ES.
Battery voltage: 48vDC.
Battery type: Lithium/Lead-acid.

Inverter Output [AC]

Rated Power: 5000W.
AC Voltage Regulation (Battery): 230VAC 5%.
Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93%.
Waveform: Pure sine wave.
Transfer Time: 10ms – 20ms.

Solar Charger

Maximum PV Array Power: 6000W.
MPPT Range @ Operating Voltage: 120VDC – 430VDC.
Maximum PV Array Open Circuit Voltage: 450vDC.
Maximum Solar Charge Current: 100 A.

AC Charger

AC Charge Current: 80A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 230 VAC.
Frequency Range: 50 Hz/60 Hz (Auto sensing).

Height: 330 x 485 x 135mm.
Weight: 12 kg.
