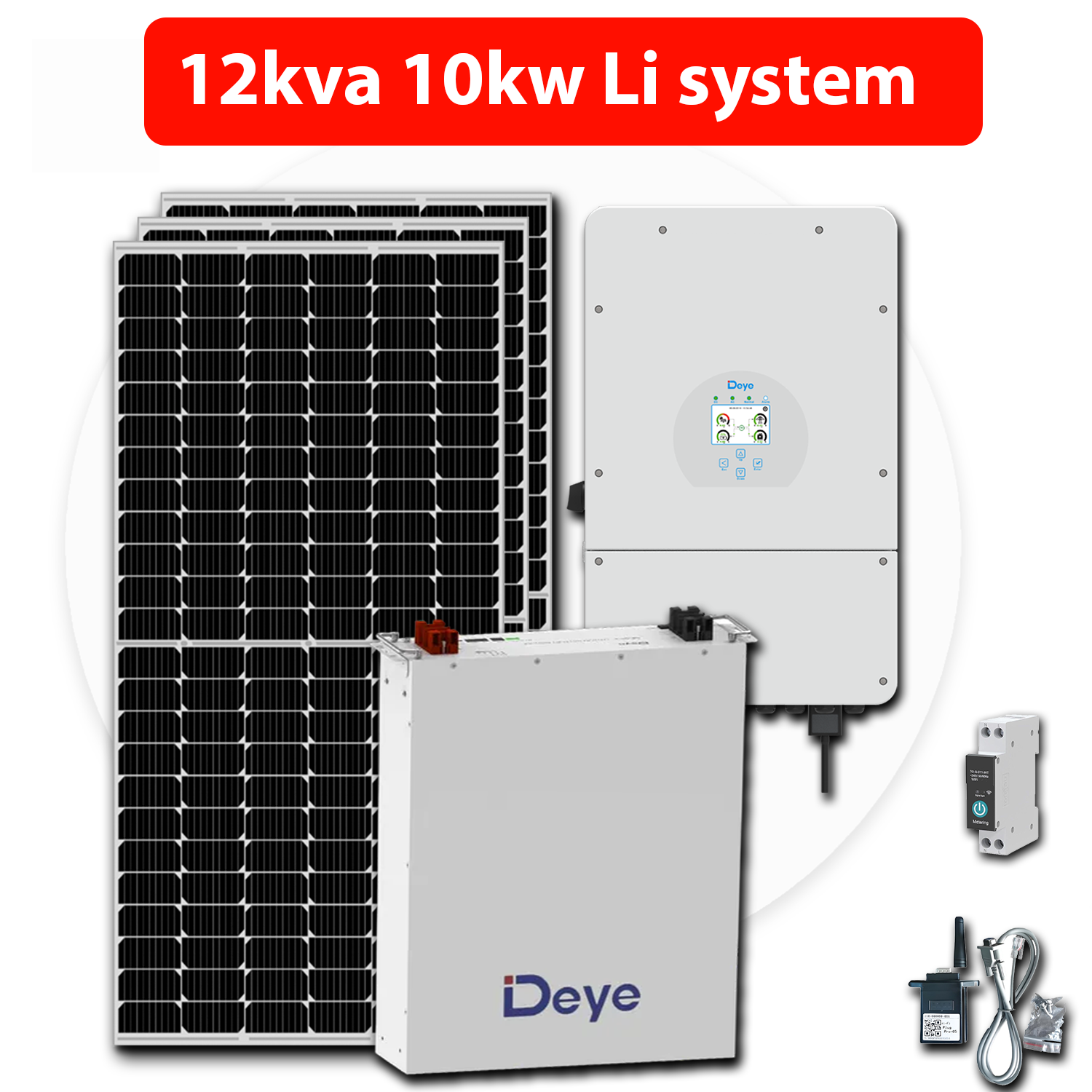

12Kva deye Solar System 10.4Kw Lithium 12x 550W + Installation Kit

Sale!
12Kva deye Solar System 10.4Kw Lithium 12x 550W + Installation Kit
New Year - SPECIALS!

Original price was: R93,332.00.Current price is: R92,332.00.

Deye SE-G5.3 LiFePO4 51.2V 5.3kw Battery

Cobalt-Free Lithium Iron Phosphate (LFP) Battery
Safe, reliable, and eco-friendly energy storage with intelligent BMS protection. Features modular design for easy expansion (up to 340kWh), supports remote monitoring and firmware upgrades, and operates efficiently in a wide temperature range. Ideal for residential and commercial use.

Features

Safer
Cobalt-Free Lithium Iron Phosphate (LFP) Battery: Safety and long lifespan, high efficiency, and high power density. Intelligent BMS, providing complete protection.

Reliable
Support high discharge power. IP20, natural cooling, wide
temperature range: -20°C to 55°C.

Flexible
Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 340kWh.
Suited to residential and commercial applications for increasing the self-consumption ratio.

Convenient
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.

Eco-Friendly
Use environmental protection materials, the whole module non-toxic, pollution-free.

12kva Deye Hybrid 3Phase Inverter
1 × 12kva Deye Hybrid 3Phase Inverter
Original price was: R56,500.00.Current price is: R34,500.00.
550W Canadian Mono Solar Panel
12 × 550W Canadian Mono Solar Panel
Original price was: R4,100.00.Current price is: R1,650.00.
3M Rail
8 × 3M Rail
R180.00
Roof Hooks For Solar
16 × Roof Hooks For Solar
R85.00
End Clamps
8 × End Clamps
Original price was: R35.00.Current price is: R30.00.
Middle Clamps
18 × Middle Clamps
Original price was: R35.00.Current price is: R30.00.
100m 6mm Solar Cable Black
1 × 100m 6mm Solar Cable Black
Original price was: R2,999.00.Current price is: R2,295.00.
complete 12Way
1 × complete 12Way
R1,398.00
Battery Disconnector
1 × Battery Disconnector
Original price was: R599.00.Current price is: R399.00.
Battery Fuse 100A-160A
2 × Battery Fuse 100A-160A
Original price was: R300.00.Current price is: R180.00.
DEYE 51.2V 5.32KWH RACK/WALL MOUNT BATTERY
2 × DEYE 51.2V 5.32KWH RACK/WALL MOUNT BATTERY
Original price was: R25,999.00.Current price is: R14,900.00.
Wifi Geyser Timer
1 × Wifi Geyser Timer
Original price was: R599.00.Current price is: R350.00.
Inverter Wi-Fi dongle
1 × Inverter Wi-Fi dongle
Original price was: R1,500.00.Current price is: R850.00.
Category:

Description

Includes:  Wi-Fi Dongle + BMS Communication Cable

Higer yields.

  • Improve self-consumption ratio up to 80%, reducing your electricity bill.
  • DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
  • Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

  • LCD Touch screen and buttons, easy operation.
  • Compatible with lithium-ion battery and lead acid battery.
  • Web browser and mobile App monitoring supported.

Reliable.

  • PV lighting protection, Anti-islanding protection, Leakage current protection etc.
  • Support store energy from DG when needed, ensure the system working within 7*24H.
  • IP65 protection degree, adapt to indoor and outdoor using.
  • Automatically switch from on-grid to off-grid mode within 5ms.
  • Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

  • Programmable charging and discharging schedule.
  • Both wind turbines and solar panels can be connected as DC input power.
  • Max. 16 units can be paralleled for higher system power.
  • Retrofitting of existing solar system to energy storage system.

Features:

  • 100% unbalanced output, each phase Max. output up to 50% rated power.
  • 48V low voltage battery, transformer isolation design.
  • 6 time periods for battery charging/discharging.
  • Max. charging/discharging current of 220A.
  • Frequency droop control.
  • DC couple and AC couple to retrofit existing solar system.
  • Support storing energy from diesel generator



Battery Input Data

  • Battery Type: Lead-acid or Li-lon
  • Battery Voltage Range (V): 40-60V
  • Max. Charging Current (A): 220A
  • Max. Discharging Current (A): 220A
  • Charging curve: 3 Stages/Equalization
  • External Temperature Sensor: Optional
  • Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

  • Max. DC Input Power (W): 15600W.
  • PV input Voltage (V): 500V (150V-500V).
  • MPPT Range (V): 150-425V.
  • PV Input Current (A): 26+26+26
  • No. of MPPT Trackers: 3
  • No. of Strings Per MPPT Tracker: 2

AC Output Data

  • Rated AC Output and UPS Power (W): 12000W
  • Max AC Output Power (W): 12000W
  • Peak Power(off-grid): 2 times of rated power, 5 S.
  • AC Output Rated Current(A): 18A
  • Max.AC Current(A): 27A
  • Max Continuous AC Pass-through(A): 50A.
  • Output Frequency and Voltage: 50/60Hz; 220/230Vac (single phase)
  • Grid Type: Single Phase
  • Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

  • Max. Efficiency: 97.60%
  • Euro Efficiency: 97.00%
  • MPPT Efficiency: 99.90%

Protection

  • PV Arc Fault Detection: Integrated (Except European Type)
  • PV Input Lightning Protection: Integrated
  • Anti -islanding Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • Insulation Resistor Detection: Integrated
  • Residual Current Monitoring Unit: Integrated
  • Output over Current Protection: Integrated
  • Output Shorted Protection: Integrated
  • Output over Voltage Protection: Integrated
