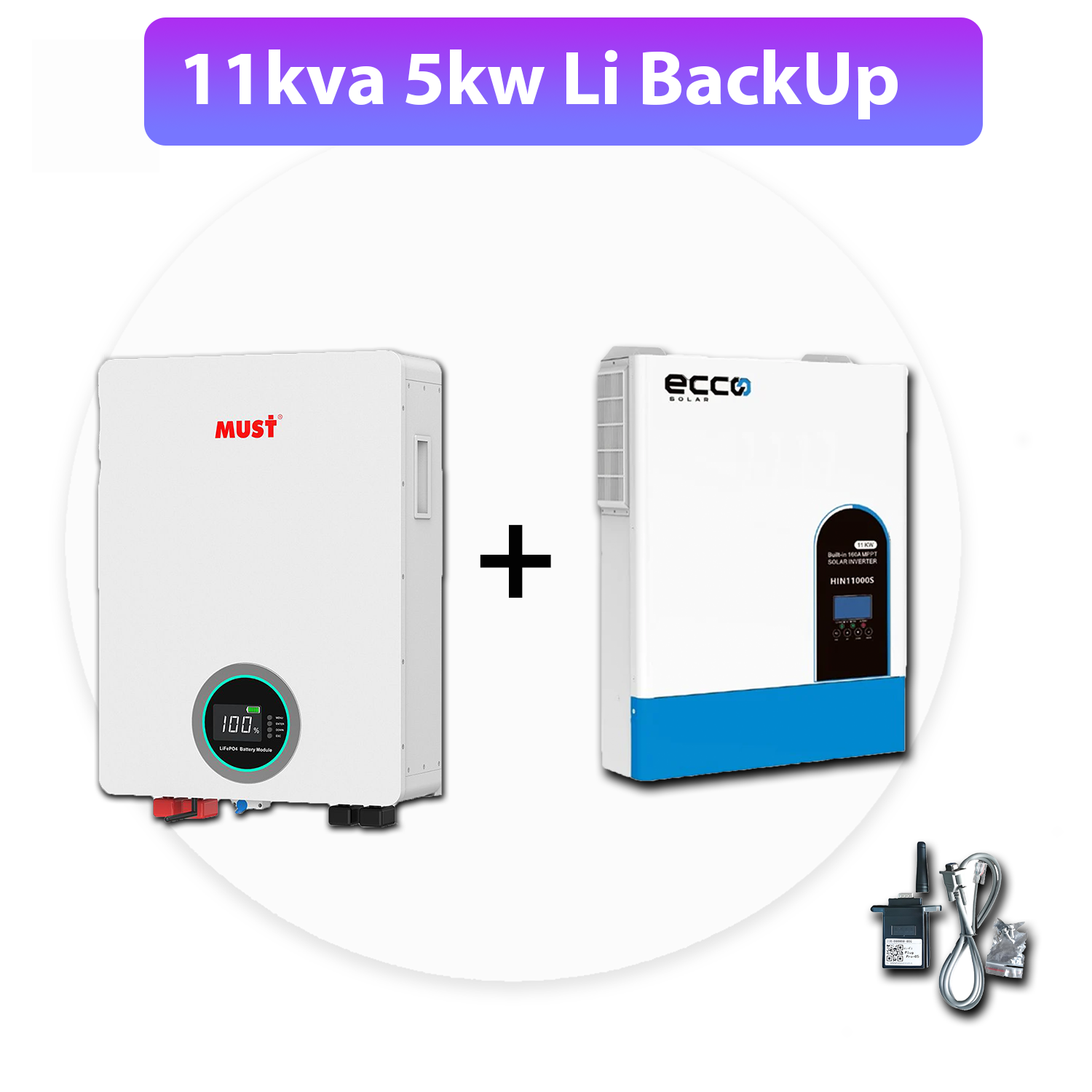

11Kva Ecco 5kw Lithium BackUp System Over 8Hours RunTime

Sale!
11Kva Ecco 5kw Lithium BackUp System Over 8Hours RunTime
New Year - SPECIALS!

Original price was: R23,347.00.Current price is: R22,347.00.

The LP1600 Series offers a versatile and reliable power solution. Combine up
to 40 units for energy capacities ranging from 2560Wh to 15360Wh. With
WiFi Remote Monitoring, stay connected and in control. Whether it’s wallmounted convenience, stacked-mounting (up to 5 units) for space efficiency,
or rack-mounted for industrial power management, this series offers seamless
adaptability.

■ 3-in-1: Wall-mounted, Stacked-mounted, Rack-mounted(optional)
■ Vertical-mounted only for LP16-48300 & LP16-48320
■ Large capacity, high power output
■ Safest lithium iron phosphate battery cell with high energy density
■ Modular design: supports up to 40 units in parallel
■ Support CAN & RS485 communication with mainstream inverters
■ Local monitoring via LCD monitor
■ Built-in WiFi Smart BMS Module

Specifications:

Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A

Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

Manual Change Over Switch
1 × Manual Change Over Switch
Original price was: R300.00.Current price is: R199.00.
Circurt Breaker
2 × Circurt Breaker
R100.00
Battery cable P/M
3 × Battery cable P/M
R150.00
6Way DB Board
1 × 6Way DB Board
Original price was: R299.00.Current price is: R199.00.
11 KVA 11000W MPPT 160A INVERTER PURE SINE WAVE - ECCO
1 × 11 KVA 11000W MPPT 160A INVERTER PURE SINE WAVE - ECCO
Original price was: R14,500.00.Current price is: R9,300.00.
MUST 5.12KWH 48V 100AH LITHIUM BATTERY
1 × MUST 5.12KWH 48V 100AH LITHIUM BATTERY
Original price was: R15,999.00.Current price is: R12,999.00.
Category:

Description

  • Inverter

    The ECCO Hybrid Inverter delivers exceptional efficiency with its MPPT (Maximum Power Point Tracking) charge control technology. Compared to PWM systems, MPPT is up to 30% more efficient, ensuring optimal charging performance. This inverter is designed to work seamlessly with both lithium batteries and traditional solar systems, offering superior reliability and performance.

    Key Features:

    • Dual MPPT Functionality: Built-in 2 MPPT charge controllers for maximum solar energy harvesting.
    • Lithium Battery Activation: Supports activation via PV (solar) or utility power.
    • RS485 Communication: Fully compatible with LiFePO4 batteries for enhanced performance.
    • Pure Sine Wave Output: Delivers clean, stable power with a power factor of 1.0.
    • Wide PV Input Range: Maximum 500VDC input for flexible system design.
    • Detachable Dust Cover: Ideal for harsh environments to protect internal components.
    • WiFi Remote Monitoring: Optional WiFi dongle for remote monitoring and control.
    • Multiple Output Priority Settings: Choose between SUB, SBU, and SUF for versatile output management.
    • EQ Function: Optimizes battery performance and extends battery life.

    Specifications:

    Model: HIN11000S
    Capacity: 11KVA / 11KW
    Maximum PV Input Power: 11KW
    Lithium Battery Activation: Yes (via PV or Utility)
    Lithium Battery Communication: Yes (RS485)
    Parallel Capability: Not supported

    Input:

    • Nominal Voltage: 230VAC
    • Acceptable Voltage Range:
      • 170-280VAC (for computers)
      • 90-280VAC (for home appliances)
    • Frequency: 50/60 Hz (Auto-sensing)

    Output:

    • Nominal Voltage: 220/230/240VAC
    • Surge Power: 22,000VA
    • Frequency: 50/60 Hz
    • Waveform: Pure Sine Wave
    • Transfer Time: 10ms (for computers), 20ms (for home appliances)
    • Peak Efficiency: 94%
    • Overload Protection: 5s at 140% load

    Battery:

    • Battery Voltage: 48V
    • Maximum Discharge Current: 220A
    • Floating Charge Voltage: 54VDC
    • Overcharge Protection: 63VDC
    • Charging Method: CC/CV

    Solar Charger & AC Charger:

    • Solar Charger Type: MPPT
    • Max PV Array Power: 5500W x 2
    • Max PV Array Open Circuit Voltage: 500VDC
    • MPPT Voltage Range: 60VDC – 500VDC
    • Max Solar Input Current: 18A x 2
    • Max Solar Charge Current: 160A
    • Max AC Charge Current: 120A
    • Max Charge Current: 160A

    Physical:

    • Dimensions (D x W x H): 540 x 415 x 122 mm
    • Net Weight: 15kg
    • Communication Interface: RS232/RS485/DRY Contact
    • LCD Display: Yes

    Environmental:

    • Operating Temperature: -10°C to 55°C
    • Storage Temperature: -15°C to 60°C
    • Humidity: 5% to 95%
