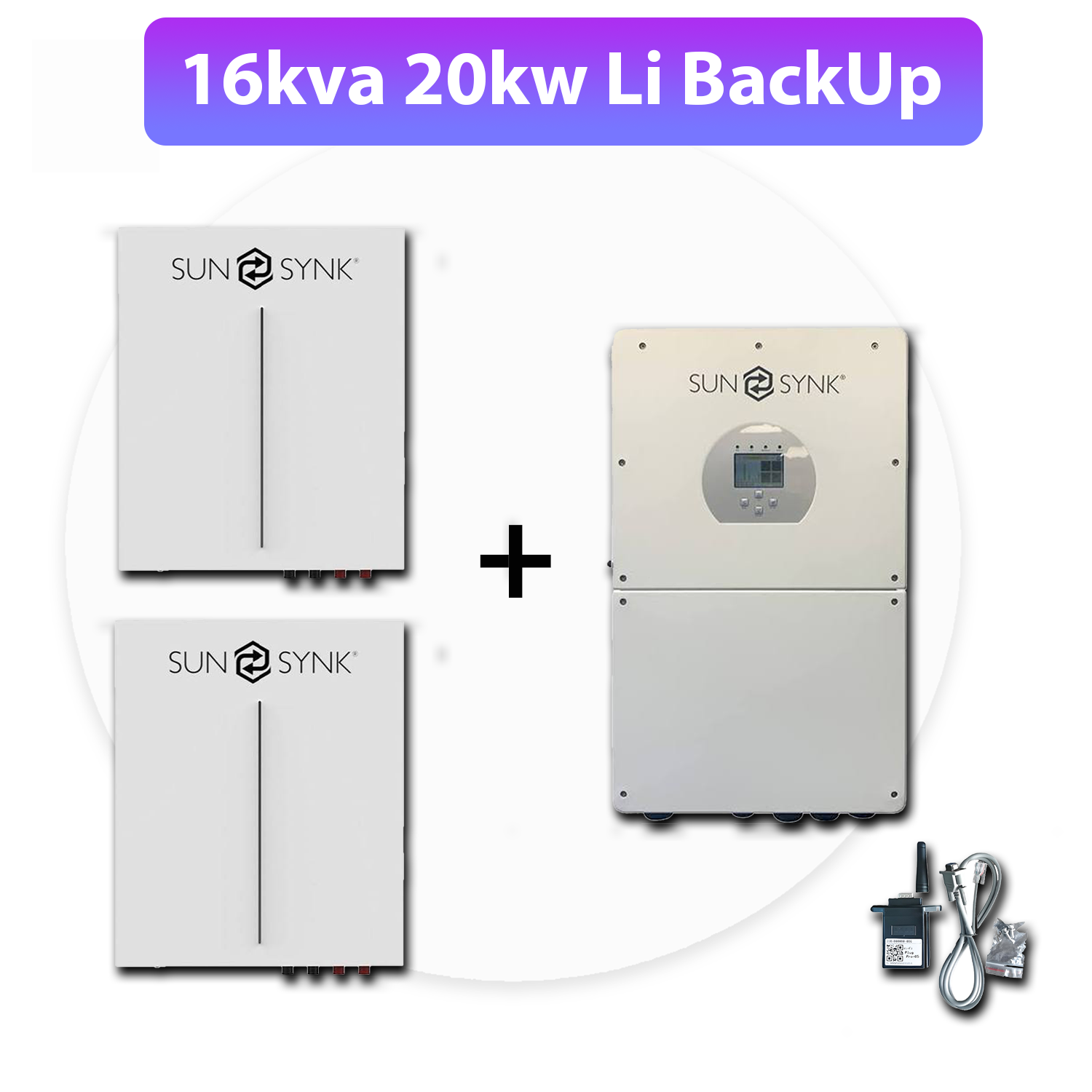

SINGLE PHASE 16kW SUNSYNK Hybrid Inverter – Pure Sine Wave, MPPT, Wi-Fi, and Parallel Functionality

Description:

• Wi-Fi and GSM Monitoring: Supports remote monitoring via Wi-Fi or GSM, allowing for real-time tracking and system adjustments from anywhere.
• Visual Power Flow Screen: Provides clear insights into energy flow and system performance, making it easy to track solar energy generation and consumption.
• Parallel and Multi-Inverter Function: Capable of parallel connection with up to 16 units, supporting both grid-tied and off-grid configurations for large-scale power systems.
• Broad Compatibility: Works with main electrical grid voltages and power generators, enabling seamless integration with existing power sources.
• Self-Consumption and Grid Feed-In: Supports both self-consumption and feed-in to the grid for sustainable energy management.
• Automatic Restart and Earth Bond Feature: Ensures system stability with auto-restart functionality and earth bonding via relay for safety.
• Fully Programmable: Customizable supply priority for battery or grid, with adjustable charging parameters and operation modes (on-grid, off-grid, UPS).
• Enhanced Protection: Includes overload, over-temperature, and short-circuit protection, along with smart battery charger design for optimal battery life.
• Power Limiting Function: Prevents excess power from flowing into the grid, ensuring system efficiency and safety.
• Touch LCD Display: A colourful touch screen with IP65 protection for durability and ease of use in harsh conditions.
• Flexible Integration: DC-coupling and AC-coupling support for retrofitting existing solar systems and scaling your setup.
• High Charging/Discharging Current: Max charging current of 275A and max discharging current of 300A for robust energy storage solutions.
• Energy Storage from Diesel Generators: Capable of storing energy from a diesel generator for backup power.

Battery Input Data:

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range: 43V – 60V
• Max Charging Current: 275A
• Max Discharging Current: 300A
• Charging Curve: 3 stages / Equalisation
• External Temperature Sensor: Yes
• Li-Ion Battery Charging Strategy: Self-adaptation to BMS

PV String Input Data:

• Max DC Input Power: 18,000W
• Max PV Input Voltage: 450V
• MPPT Range: 250V – 450V
• Start-up Voltage: 150V
• PV Input Current: 22A + 22A
• Max PV Isc: 26A + 26A
• MPPT / Strings per MPPT: 3/2

AC Output Data:

• Max On-Grid AC Power: 16,000W
• Max Off-Grid AC Power: 13,000W
• Peak Power (Off-Grid): 2x rated power for 10 seconds
• AC Output Rated Current: 65A
• Max AC Current: 70A
• Max Continuous AC Passthrough: 200A
• Frequency Range: 45Hz – 55Hz
• Voltage Range: 211V – 264V
• Grid Type: Single-phase
• Current Harmonic Distortion: THD <3% (linear load <1.5%)

Efficiency:

• Max Efficiency: 97.6%
• Euro Efficiency: 97%
• MPPT Efficiency: 99.9%

Protection:

• Includes integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Overcurrent Protection, and Surge Protection.
